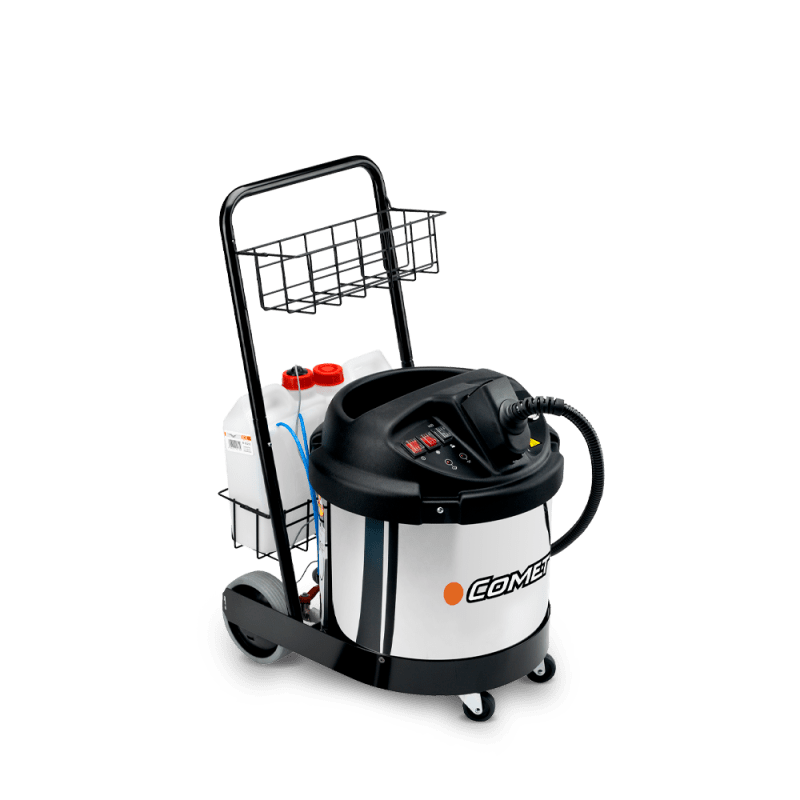

DSG CAR-3.3 EX

DSG CAR-3.3 EX

FLOOR CARE | DRY STEAM GENERATORS


  • Single-phase dry steam generator, ideal for automotive sector
  • Saturated steam at 9 bar at a temperature of 175°C
  • Steam gun with low tension control AISI 304 SS body
  • Boiler 3,3 kW AISI 304 SS 3.3 kW boiler, 25/10 thickness
  • Low water level indicator lamp
  • System for using chemicals and detergents mixed with steam
  • Heating and activation time required: 7 min
  • Steam regulation
  • Discharge valve
  • Pressure gauge
  • The boiler can be refilled from the tank provided (continuous duty)
  • Wheels suitable for wheels suitable for food industry
  • Storage basket
TECHNICAL FEATURES
Product Code45006-00006
Max pressure (bar)5
Electrical power supply (V-Hz)230-50
Detergent tank (l)5/5
Dimensions (cm)75x60x70
Weight (Kg)31
Box dimension (cm)75x60x70
Temperatura (°C)175
Potenza assorbita caldaia (W)3300
Produzione vapore (Kg/h)4.62
Tipo caldaia/volume (l)Inox Aisi 304/4,6
